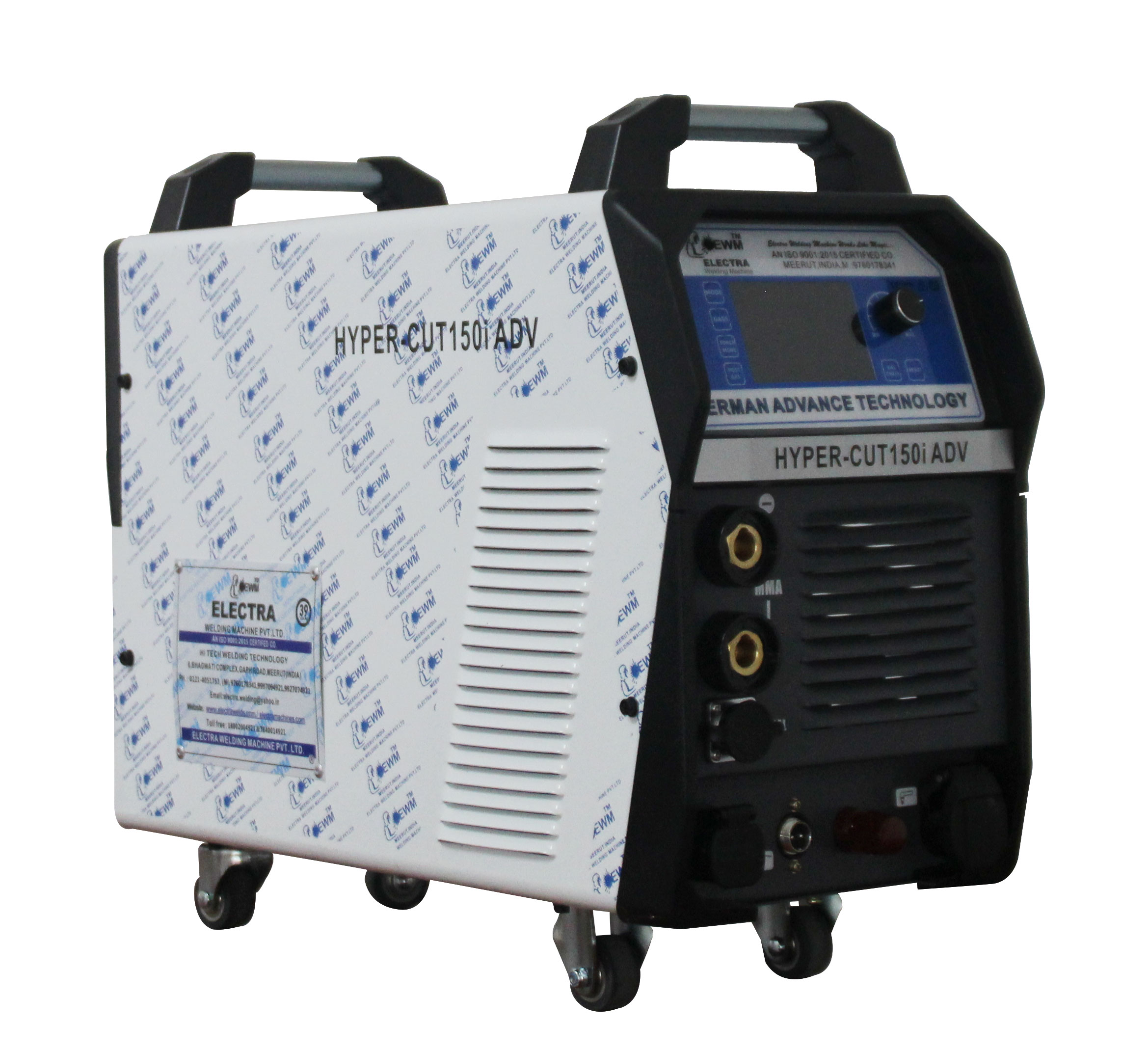

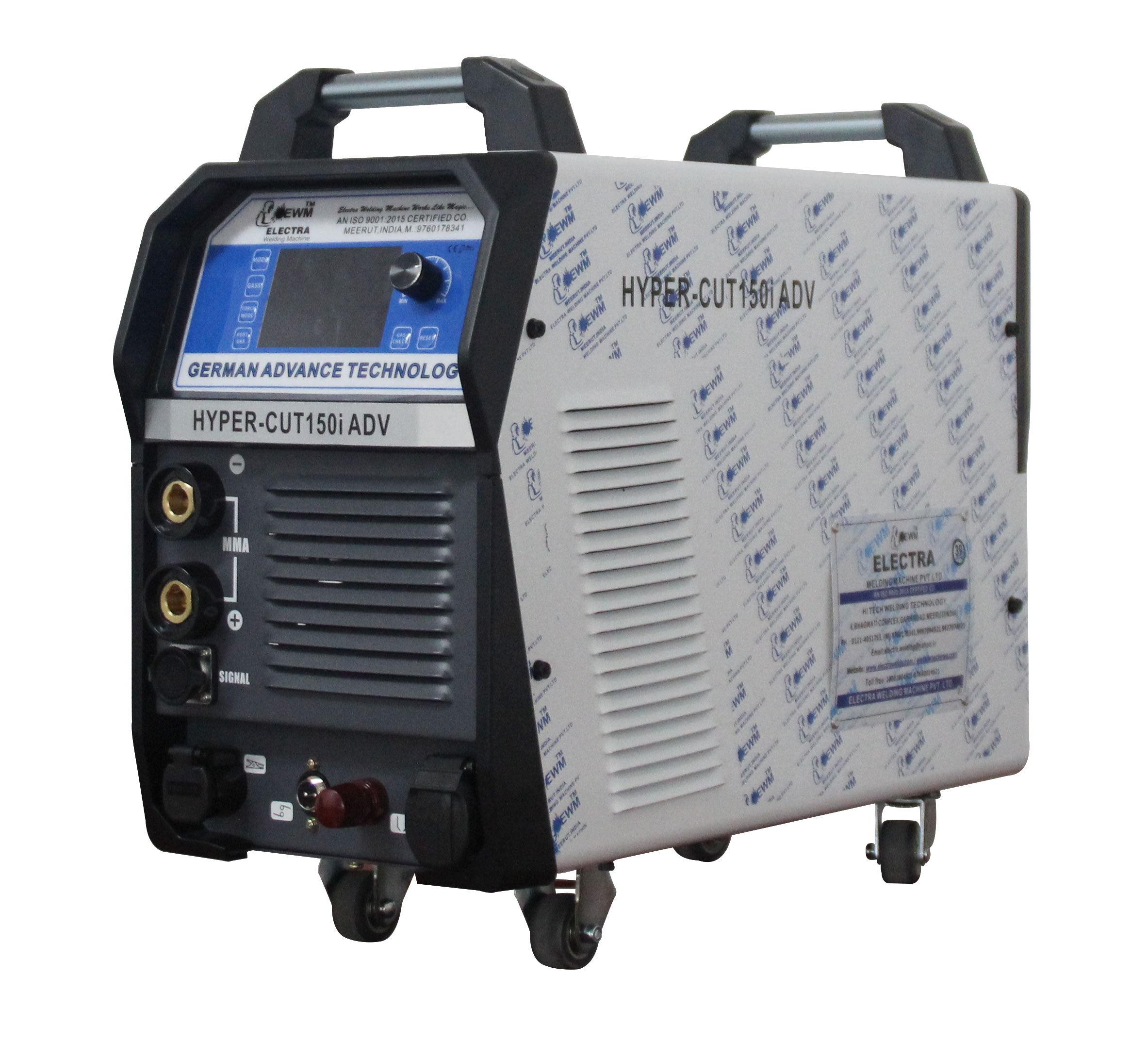

HYPER- CUT 150i Adv
| MODEL NAME | HYPER-CUT 150i ADV | |
|---|---|---|
| INPUT VOLTAGE | 3P415V±15% | |
| FREQUENCY | 50/60Hz | |
| RATED INPUT CURRENT | ||
| OUTPUT CURRENT | CUT:20-150A/MMA:20-240A | |
| Recommended cutting thickness(mild steel) | ≤40mm | |
| Air compressor(kg) | 4-7kg | |
| DUTY CYCLE | 60% | |
| EFFICIENCY | ≥85% | |
| INSULATION GRADE | F | |
| HOUSING PROTECTION GRADE | IP21 | |
| DIMENSION L x W x H | 515*262*480mm | |
| WEIGHT APPROX. | 20kg | |
HYPER- CUT 150i Adv
Professional digital control plasma cutting machine, maximum cutting ability for mild steel can up to 40mm, supporting works with CNC equipment and with MMA process, good fit for on site maintenance, big construction site, general installations, etc.
FEATURES
- Latest mature MCU control technology,strong power in portable design.
- full bridge IGBT inverter design,offering more efficiency, better control.
- Friendly interface, easy to understand and achieve job in comfortable way.
- Support separated air compressor, more convenient for outdoor operation.
- Pilot ARC technology, innovative advanced design increase lifeftime consumables
- Concentrated plasma stream, less heat input, less distortion and clean cutting face.
- Different materials:Mild steel, stainless steel, aluminium and many more.
- Supporting MMA function, saving cost for achieving welding demand, wider application.
