Who we Are

ELECTRA Welding is an ISO – 9001:2015 Certified Company World’s No.1 Sales in TIG, MIG, Plasma, Arc, Cutting Machines, Inverters, Spot Welding Machines, Stud Welding, Welding Automation, Accessories and all equipment’s. We are offering high performance welding machine inverters, which manufactured from our own company and distributed to all over the world.

Location

Khasra No - 567/3 Meerut - Hapur Road, Nalpur, Meerut (INDIA)

Email Address

electra.welding@yahoo.in

Make A Call

0121-4051753, +91 97601 78341

Arc Welding Machine

ARC 235i MAX ADV.

MODEL NAME		ARC235i MAXADVANCE
INPUT VOLTAGE	1P220V ± 15%
FREQUENCY	50/60Hz
OUTPUT CURRENT	30-235A
ARC FORCE	1-10
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	355130220mm
WEIGHT APPROX.	4.2kg

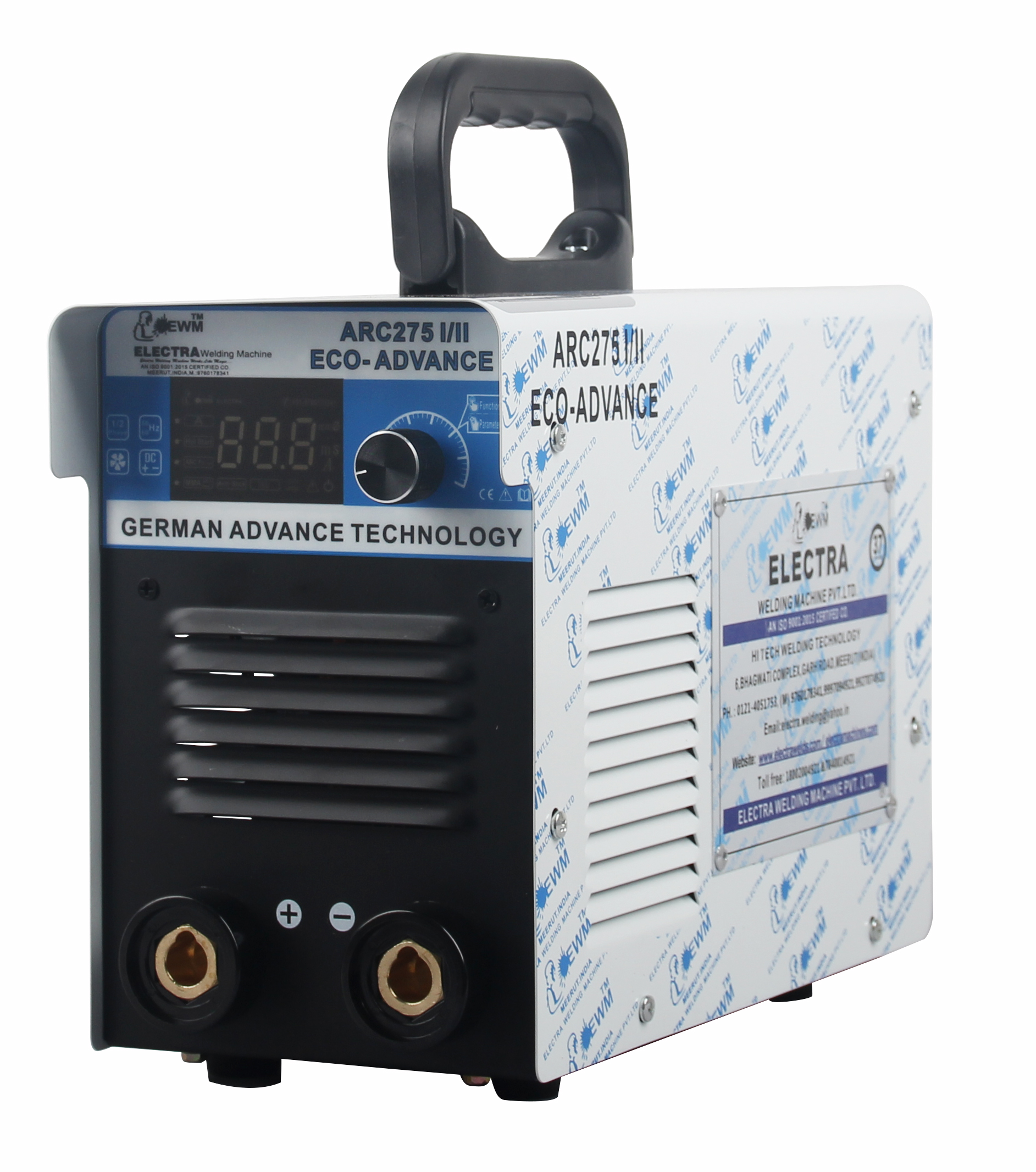

ARC275 I/II ECO-ADVANCE

MODEL NAME		ARC75 ECO-ADVANCE
INPUT VOLTAGE	1P220V&2P415V
FREQUENCY	50/60Hz
OUTPUT CURRENT	30-275A
ARC FORCE	1-100
HOT START RANGE	1-10
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	355130220mm
WEIGHT APPROX.	5.8kg

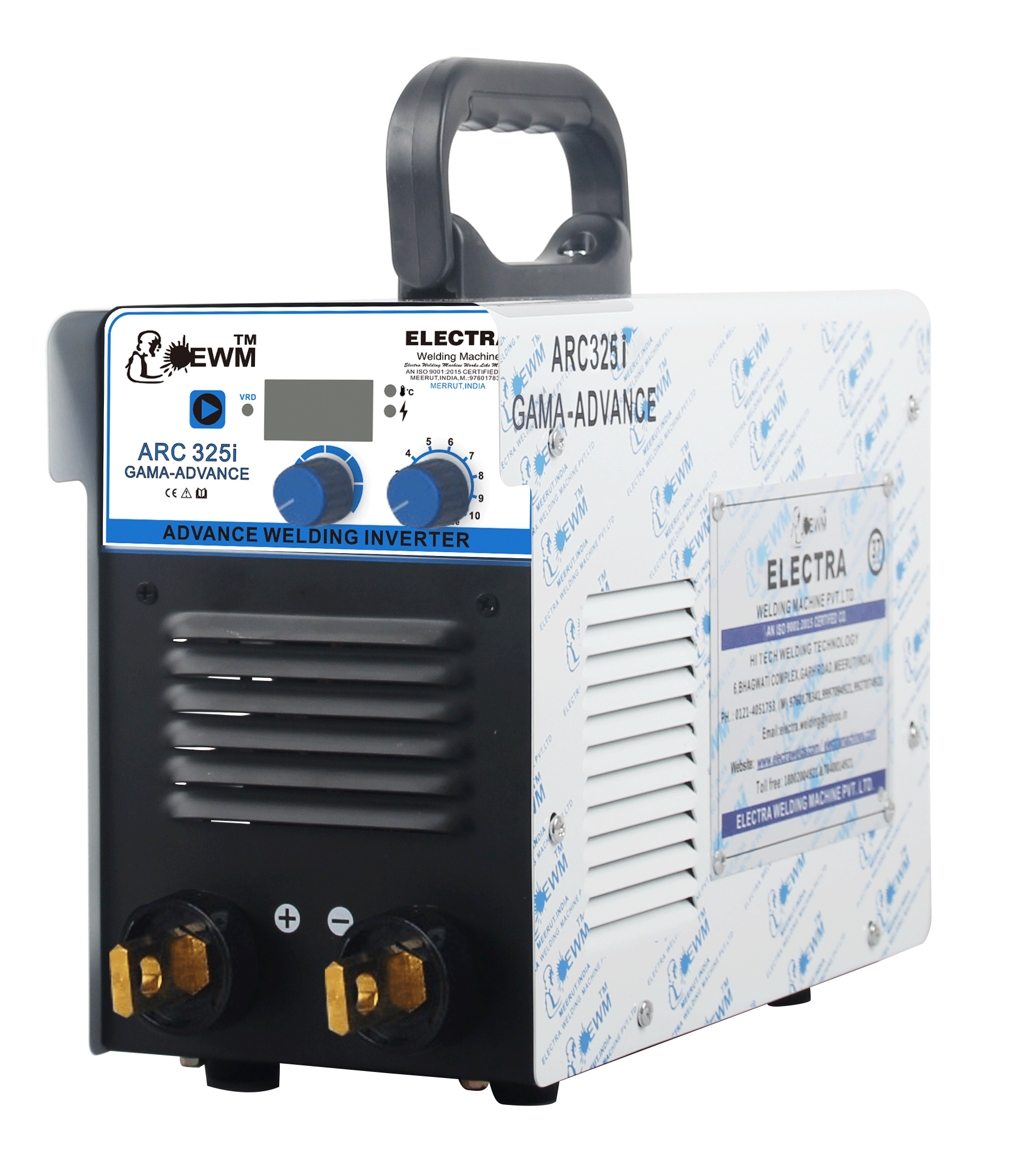

ARC325 i GAMA ADVANCE

MODEL NAME		ARC325 GAMA ADVANCE
INPUT VOLTAGE	1P220V ± 15%
FREQUENCY	50/60Hz
OUTPUT CURRENT	30-325A
ARC FORCE	1-10
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	390167290mm
WEIGHT APPROX.	7.5kg

ARC275i MAX-ADVANCE

MODEL NAME		ARC75 MAX-ADVANCE
INPUT VOLTAGE	1P220V ± 15%
FREQUENCY	50/60Hz
OUTPUT CURRENT	30-275A
ARC FORCE	1-100
HOT START RANGE	1-10
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	355130220mm
WEIGHT APPROX.	5.5kg

COMMANDO 400i CC

MODEL NAME		COMMANDO 400i CC
INPUT VOLTAGE	3P415V±15%
FREQUENCY	50/60Hz
RATED INPUT CURRENT	23A
OUTPUT CURRENT	30-400A
ARC FORCE	1-100
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	510265445mm
WEIGHT APPROX.	20kg

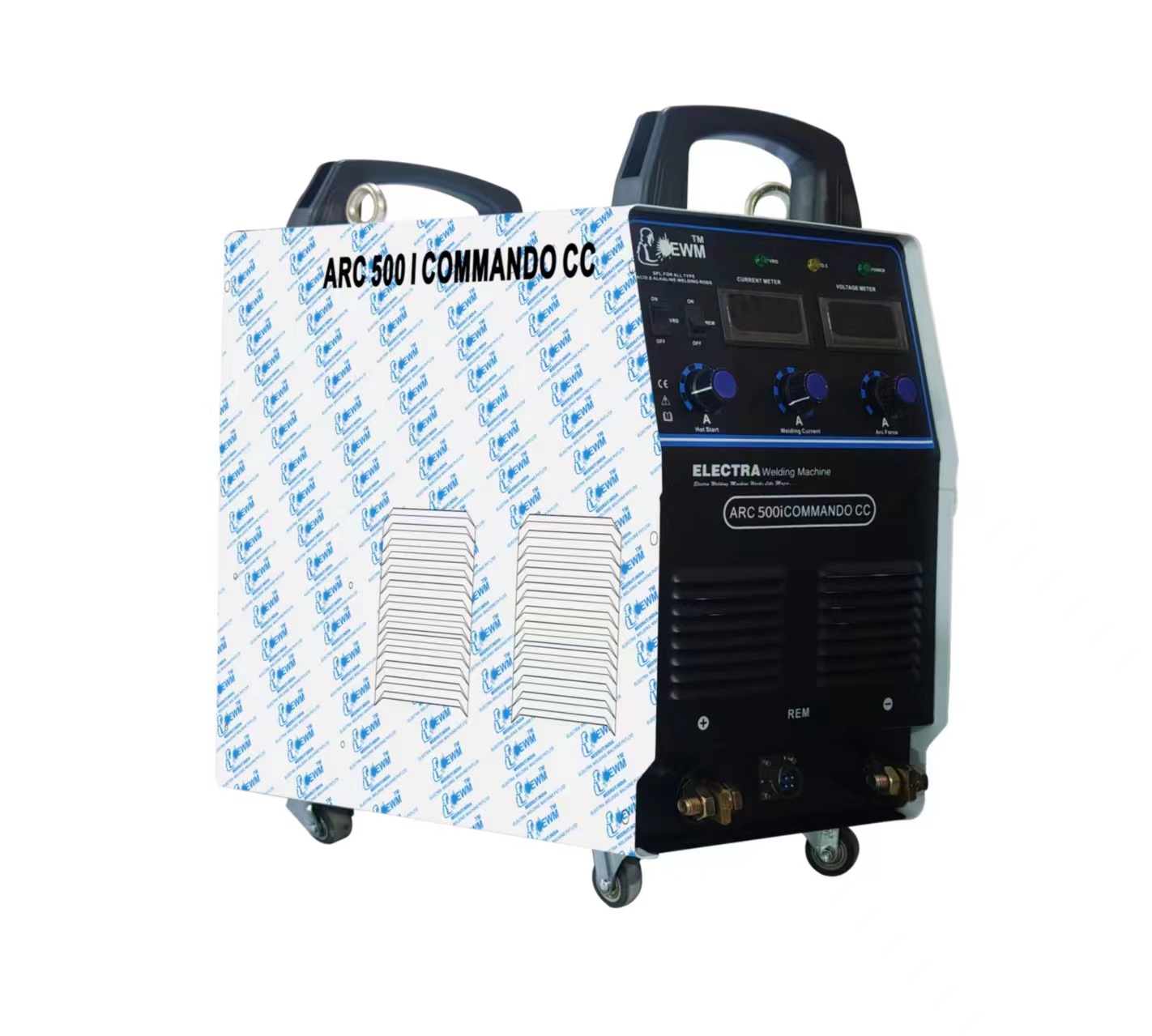

ARC 500i COMMANDO CC

MODEL NAME		ARC 500i COMMANDO CC
INPUT VOLTAGE	3P415±15%
FREQUENCY	50/60Hz
UNLOADED VOLTAGE(OCV)	68V
OUTPUT CURRENT	50-500A
ARC FORCE	1-100
HOT START RANGE	1-10
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	510265445
WEIGHT APPROX.	20.5kg

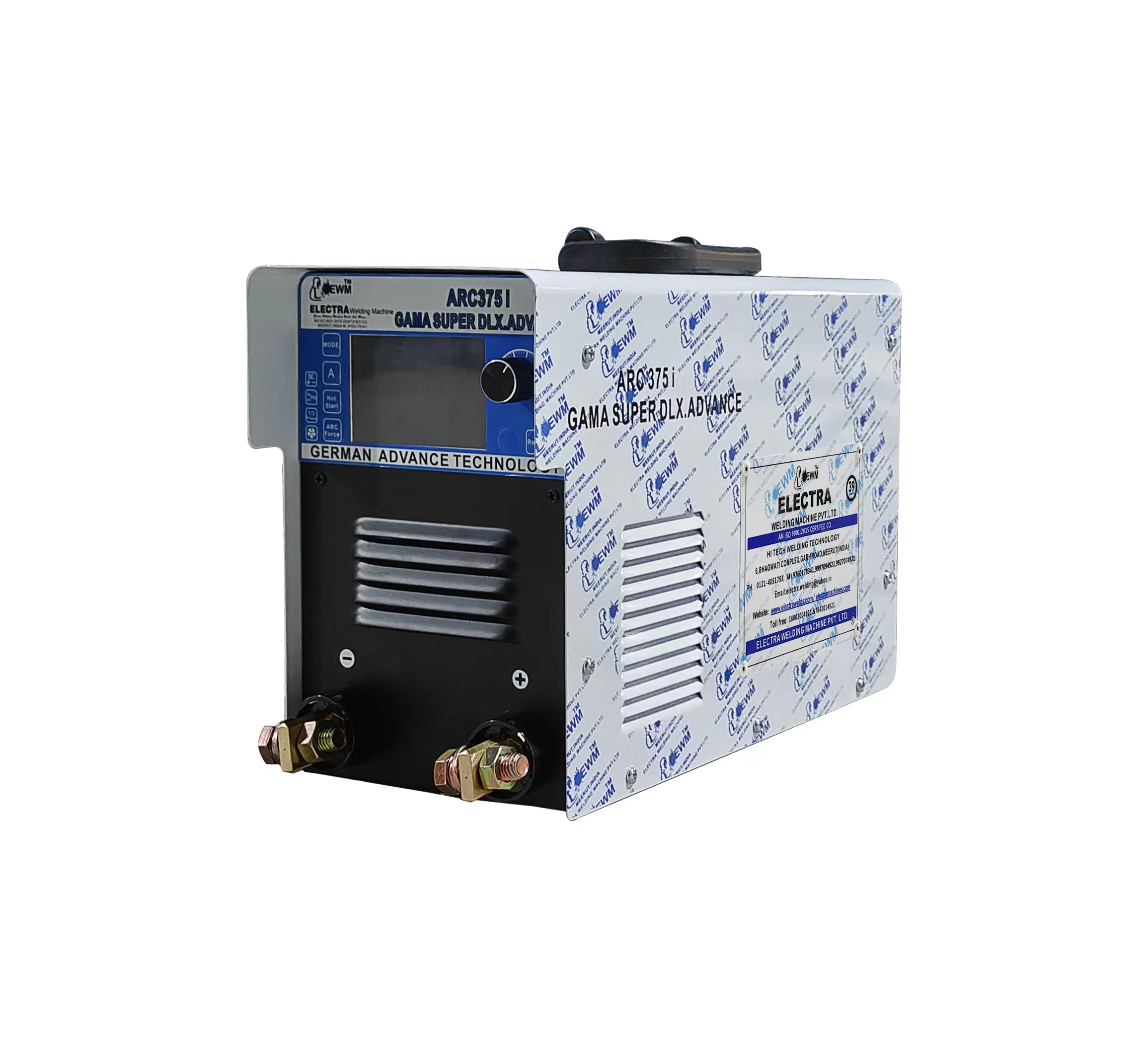

ARC375i GAMA SUPER DLX.ADVANCE

MODEL NAME		ARC375i GAMA SUPPER DLX.
INPUT VOLTAGE	1P220V&3p415±15%
FREQUENCY	50/60Hz
OUTPUT CURRENT	30-375A
ARC FORCE	1-100
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	395167290mm
WEIGHT APPROX.	7.5kg

ARC250i MAX

MODEL NAME		ARC250i MAX
INPUT VOLTAGE	1P220V±15%
FREQUENCY	50/60Hz
OUTPUT CURRENT	30-250A
ARC FORCE	1-10
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	355130220mm
WEIGHT APPROX.	4.2kg

ARC 630i COMMANDO CC

MODEL NAME		ARC 630i COMMANDO CC
INPUT VOLTAGE	3P415± 15%
FREQUENCY	50/60Hz
UNLOADED VOLTAGE(OCV)	68V
OUTPUT CURRENT	50-630A
HOT START	1-10
ARC FORCE	1-100
DUTY CYCLE	60%
EFFICIENCY	≥85%
INSULATION GRADE	F
HOUSING PROTECTION GRADE	IP21
DIMENSION L x W x H	510265445mm
WEIGHT APPROX.	22kg

Get Consultation

Let us help you achieve quality in your welding projects.

Get Consultations
